Door Access Reimagined
Touch Pass for UniFi Access
Unlock doors effortlessly with Touch Pass for UniFi Access. Enjoy seamless, contactless entry using your mobile device, ensuring secure and convenient access for authorized users.
One-Click Visitor Access
Keyless Access Options
Face Unlock
Grant access instantly with mobile tap, keyfob, PIN code, or access card—secure, convenient, and built for modern entry.
Access Products
Starter Kits

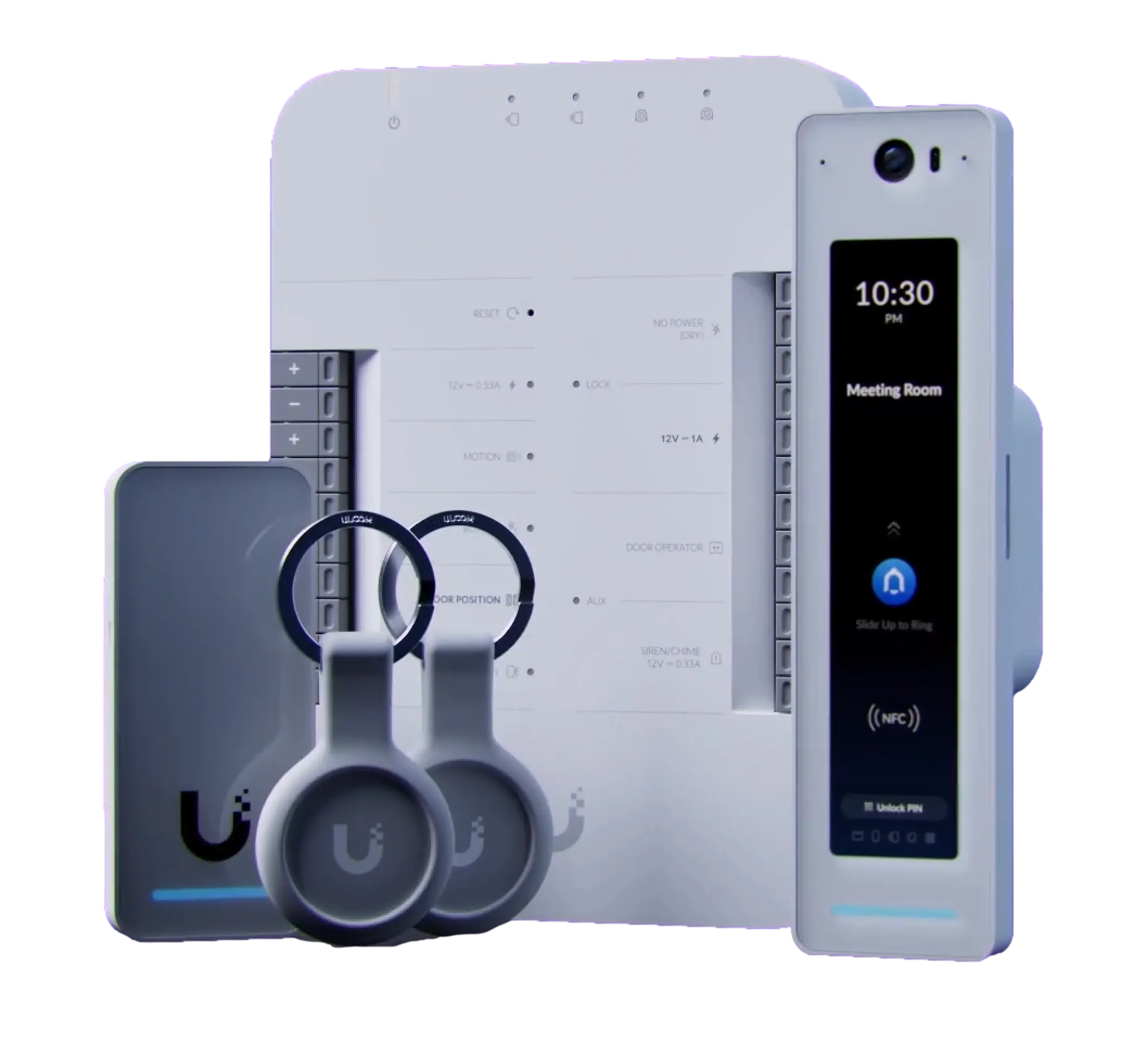

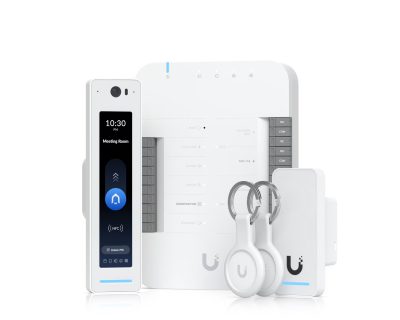

G3 Starter Kit Pro
- (1) Door Hub
- (1) G3 Reader Pro
- (1) G3 Reader
- (2) Pocket Keyfobs
- Apple Wallet Touch Pass Support
- Google Wallet Touch Pass Support

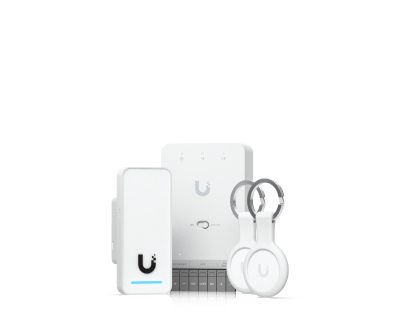

G3 Starter Kit
- (1) Door Hub
- (1) G3 Reader
- (2) Pocket Keyfobs
- Apple Wallet Touch Pass Support
- Google Wallet Touch Pass Support
G2 Starter Kit Pro
- (1) Door Hub
- (1) G2 Reader
- (2) Pocket Keyfobs

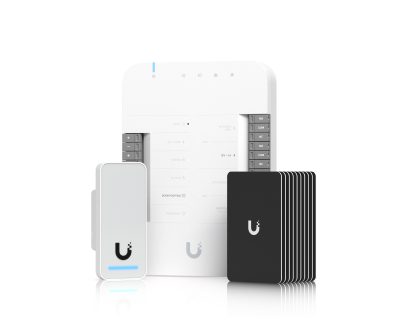

G2 Starter Kit
Entry control for a single door with one reader
- (1) Door Hub
- (1) G2 Reader
- (10) Access Cards

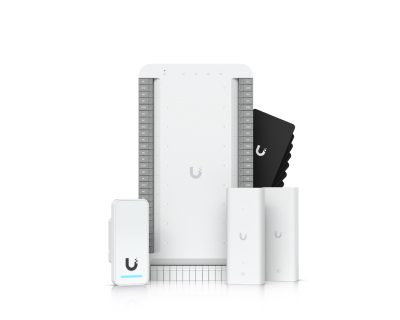

Elevator Starter Kit
Authorized entry to up to 18 floors using an in-elevator reader
- (1) Elevator Hub
- (1) G2 Reader
- (1) PoE over 2-Wire Retrofit Extenders
- (10) Access Cards

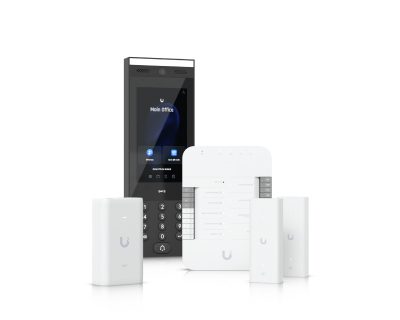

Gate Access Starter Kit
- (1) Gate Hub
- (1) Intercom
- (1) PoE over 2-Wire Retrofit Extenders
- (1) PoE++ Adapter
- Apple Wallet Touch Pass Support
- Google Wallet Touch Pass Support
Control Hubs

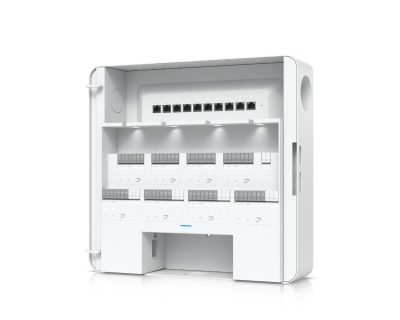

Enterprise Access Hub
Entry and exit control for up to eight readers and doors, with battery backup support
- Dimensions: 379 x 355 x 105 mm (15 x 14 x 4.1″)
- Output Relays: (8) Lock terminals (12V and dry), (4) AUX for chimes, sirens, or door openers
- Input Terminals: (8) Request to exit, (8) Door position sensor, (1) Emergency
- PoE Ports: (8) PoE for access readers and cameras
- Power Method: AC Power
- Power Redundancy: (1) Battery backup input (32–48V DC)

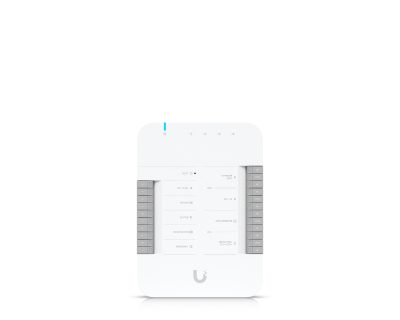

Door Hub
Entry and exit control for a single door
- Dimensions: 174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3″)
- Output Relays: (2) Lock terminals (12V and dry), (1) AUX for door operator (dry), (1) AUX for siren/chime (12V)
- Input Terminals: (1) Motion sensor, (1) Exit button, (1) Door position sensor, (1) Emergency
- PoE Ports: (4) PoE for access readers and cameras
- Power Method: PoE++

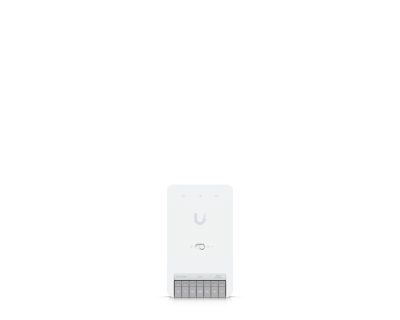

Door Hub Mini
Compact Access Control Hub for a single door
- Dimensions: 113 x 66 x 27.6 mm (4.4 x 2.6 x 1.1″)
- Output Relays: (1) Lock terminal (12V and dry)
- Input Terminals: (1) Door position sensor, (1) Emergency
- PoE Ports: (2) PoE for access readers and cameras
- Power Method: PoE++

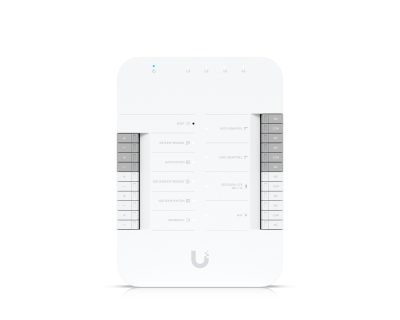

Gate Hub
Authorize gate access with License Plate Unlock
- Dimensions: 175 x 126 x 26 mm (6.9 x 5 x 1″)
- Output Relays: (2) Gate lock terminals (dry), (1) Side lock terminal (12V), (1) AUX
- Input Terminals: (1) Gate exit request, (1) Gate position, (1) Side door exit request, (1) Side door position, (1) Emergency
- PoE Ports: (4) PoE for access readers and cameras
- Power Method: PoE++

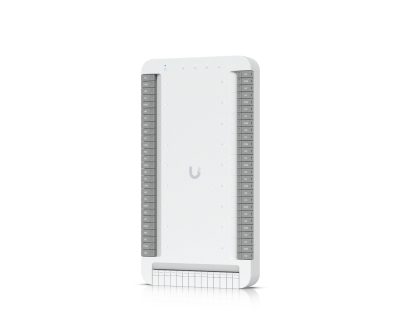

Elevator Hub
Authorized entry to up to 18 floors using an in-elevator reader
- Dimensions: 129.3 x 244.7 x 33.6 mm (5.1 x 9.6 x 1.3″)
- Output Relays: (18) Relays to support 18 floors
- Input Terminals: (1) Emergency, (1) Car position (5-bit), (1) Car status: up/down/stop/full, (1) Door status: open/close
- PoE Ports: (4) PoE for access readers and cameras
- Power Method: PoE++

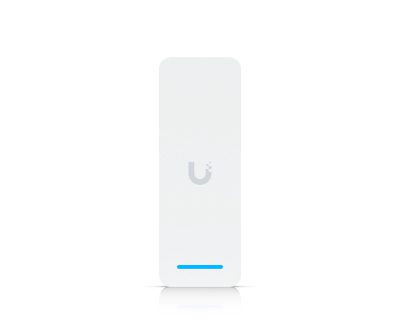

Access Ultra
Integrated hub and reader for single-door entry control
- Dimensions: 126 x 45 x 37.45 mm (4.9 x 1.8 x 4.5″)
- Output Relays: (1) Lock terminal (12V/1A)
- Input Terminals: (1) Request to exit, (1) Tamper switch
- Power Method: PoE+
Readers & Intercoms

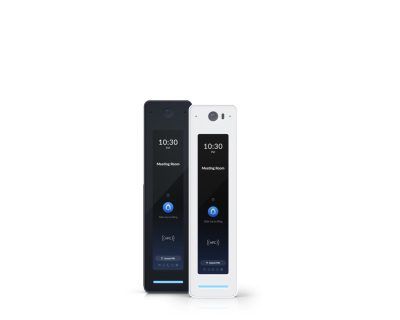

G3 Reader Pro
- Dimensions: 160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6″)
- Camera: ✓
- Two-Way Intercom & Doorbell Access: ✓
- Touch Pass Support: Apple Wallet, Google Wallet
- PIN Access: ✓
- NFC Card & Keyfob Access: ✓
- UniFi Identity Mobile Access: ✓
- Outdoor-Ready:
- IP55 rain resistance
- Device: -30 to 45° C (-22 to 113° F)
- Display: -10 to 45° C (14 to 113° F)
- Power Method: PoE via UniFi Control Hub

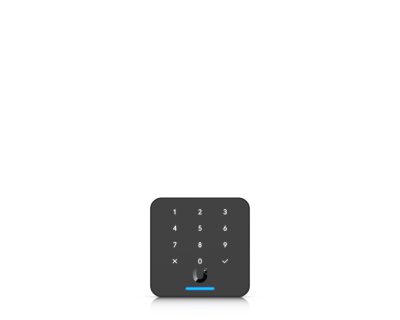

G3 Reader Flex
Third-generation NFC reader with a keypad
- Dimensions: 84 x 84 x 40.8 mm (3.3 x 3.3 x 1.6″)
- Touch Pass Support: Apple Wallet, Google Wallet
- PIN Access: ✓
- NFC Card & Keyfob Access: ✓
- UniFi Identity Mobile Access: ✓
- Outdoor-Ready: IP55 rain resistance (-30° to 45° C)
- Power Method: PoE via UniFi Control Hub

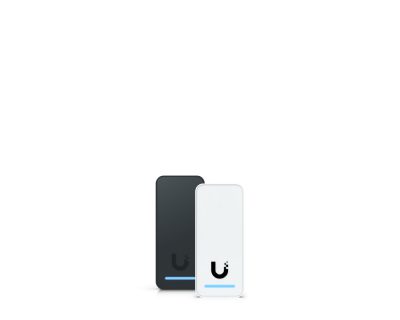

G3 Reader
Compact, third-generation NFC reader and request-to-exit device
- Dimensions: 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4″)
- Touch Pass Support: Apple Wallet, Google Wallet
- NFC Card & Keyfob Access: ✓
- UniFi Identity Mobile Access: ✓
- Outdoor-Ready: IP55 rain resistance (-30° to 45° C)
- Power Method: PoE via UniFi Control Hub

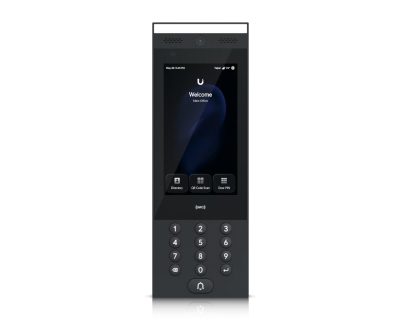

G3 Intercom
Indoor/outdoor intercom terminal with Touch Pass support.
- Dimensions: 324.8 x 113.7 x 28.3 mm (12.8 x 4.5 x 1.1″)
- Camera: ✓
- Two-Way Intercom & Doorbell Access: ✓
- Directory: ✓
- Touch Pass Support: Apple Wallet, Google Wallet
- PIN Access: ✓
- NFC Card & Keyfob Access: ✓
- UniFi Identity Mobile Access: ✓
- Handwave Request to Exit: ✓
- Outdoor-Ready: IP65 rain resistance (-30 to 60° C)
- Power Method: PoE via UniFi Control Hub

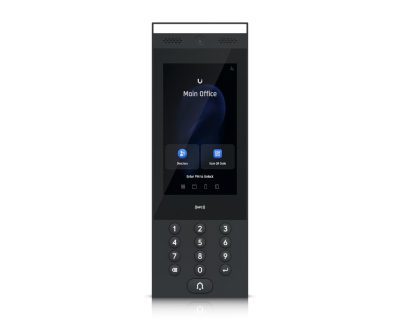

Intercom
Indoor/outdoor intercom terminal
- Dimensions: 324.8 x 113.7 x 28.3 mm (12.8 x 4.5 x 1.1″)
- Camera: ✓
- Two-Way Intercom & Doorbell Access: ✓
- Directory: ✓
- Touch Pass Support: Apple Wallet, Google Wallet
- PIN Access: ✓
- NFC Card & Keyfob Access: ✓
- UniFi Identity Mobile Access: ✓
- Handwave Request to Exit: ✓
- Outdoor-Ready: IP65 rain resistance (-30 to 60° C)
- Power Method: PoE via UniFi Control Hub
Access Ultra
Integrated hub and reader for single-door entry control
- Dimensions: 126 x 45 x 37.45 mm (4.9 x 1.8 x 4.5″)
- Output Relays: (1) Lock terminal (12V/1A)
- Input Terminals: (1) Request to exit, (1) Tamper switch
- Power Method: PoE+

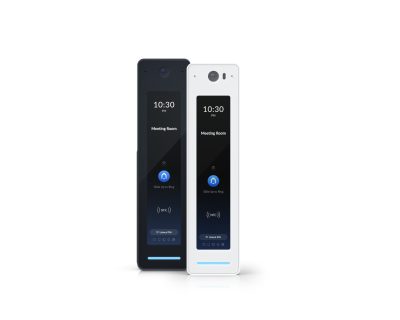

G2 Reader Pro
Second-generation NFC card reader and intercom
- Dimensions: 160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6″)
- Camera: ✓
- Two-Way Intercom & Doorbell Access: ✓
- Directory: ✓
- Touch Pass Support: ✓
- PIN Access: ✓
- NFC Card & Keyfob Access: ✓
- UniFi Identity Mobile Access: ✓
- Handwave Request to Exit: ✓
- Outdoor-Ready: IP55 rain resistance, Device: -30 to 45° C (-22 to 113° F), Display: -10 to 45° C (14 to 113° F)
- Power Method: PoE via UniFi Control Hub

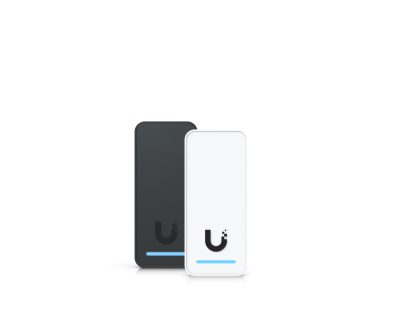

G2 Reader
- Dimensions: 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4″)
- NFC Card & Keyfob Access: ✓
- UniFi Identity Mobile Access: ✓
- Handwave Request to Exit: ✓
- Outdoor-Ready: IP65 rain resistance (-30 to 45° C)
- Power Method: PoE via UniFi Control Hub

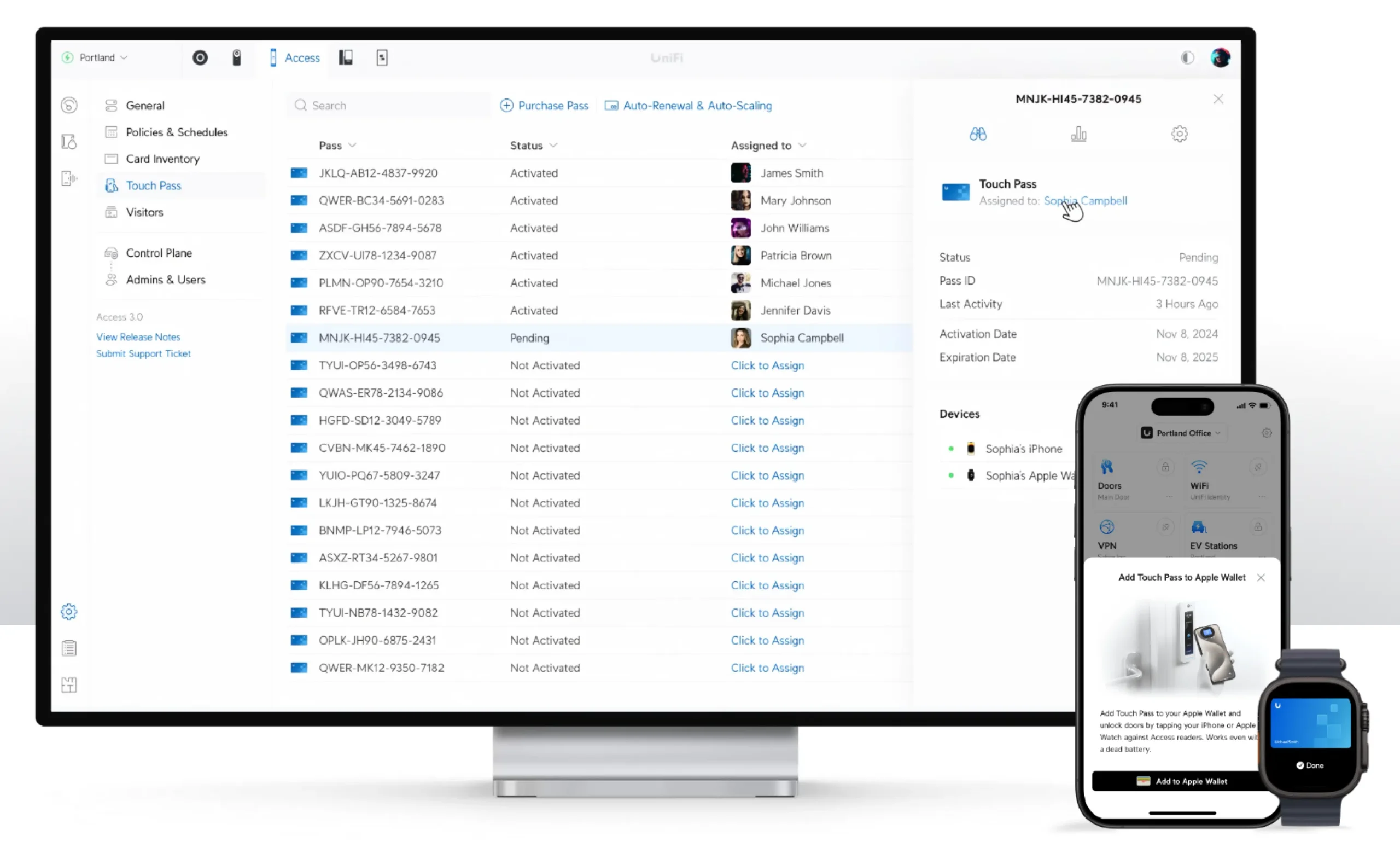

Insanely Simple Setup

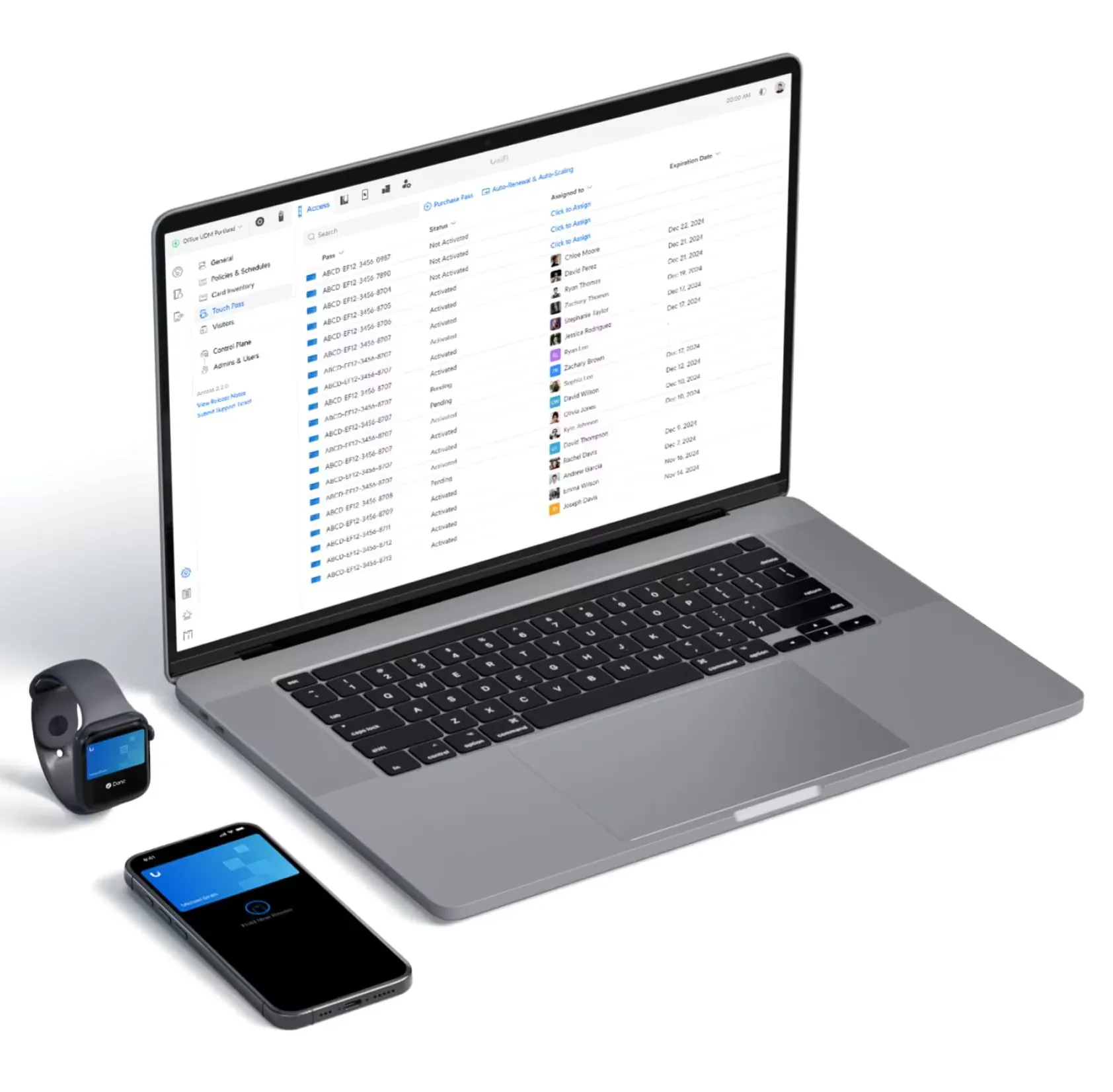

Mobile Touch Passes are seamlessly deployed into the UniFi ecosystem. Once provisioned by an administrator, they can be quickly added to Apple Wallet using the UniFi Identity application.
Security and Privacy
Access badges in Apple Wallet leverage Apple’s security and privacy features for optimal control of access credentials. The badge is never stored on Apple or Ubiquiti servers. If a user misplaces their device, they can use the Find My app to lock and locate it.
iPhone & Apple Watch Support
Easy access to all locations without unlocking your iPhone or Apple Watch. With power reserve access badges will still function for up to 5 hours after your iPhone loses charge
Door Access FAQ
Your Title Goes Here
Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.
What do I need to use UniFi Access?
- A UniFi OS Console, such as a Dream Machine Pro or Cloud Key Gen2 Plus, running the Access application.
- A PoE switch to connect your Access device(s). We recommend a UniFi PoE++ switch.
- A UA Hub
- A UA Pro or UA Lite reader to control door access in one direction. Two readers are required to control two-way access.
Can a single UA Hub manage multiple doors?
How many UA Hubs can be managed by the Access application?
Do I need to purchase specific maglocks to use UniFi Access?
If your maglock is 24V, you can still connect the UA Hub’s lock dry relay to an external power supply. If you don’t want to power your maglock with an external adapter, though, you can use the UA Hub’s power lock relay.
Does UniFi Access have emergency functionality for fires, lockdowns, and evacuations?
Will UniFi Access remain operational during a power outage?
Plus, you can manually configure locks to be fail-safe or fail-secure, so they can be locked or unlocked during a power outage.
